Blum Clip Mounting Plate, Cruciform, Expando, Pre-Mount 0mm Nickel 174H7100E
CLIP mounting plate, cruciform, 0 mm, steel, Expando (pre-mounted screws with split dowels), HA: cam
Blum Clip Mounting Hinge Plates with Expando Pre-Mounted Screws And Split Dowels.
- Clip Mounting Plate
- Part Number: 174H7100E
- Item Number: 09340977
- Colour/Finish: Nickel Plated
- Material: Steel
- 0mm Spacing
- Cruciform Shape Mounting Plate
- Fixing: Expando (pre-mounted screws with split dowels)
- Distance Cabinet Front Edge To First Fixing Position: 37mm
- Diameter Of Fixing Holes: 5mm
- Drilling Depth Of Fixing Holes: 11.5mm
- Mounting Plates Height Adjustment: With Camx

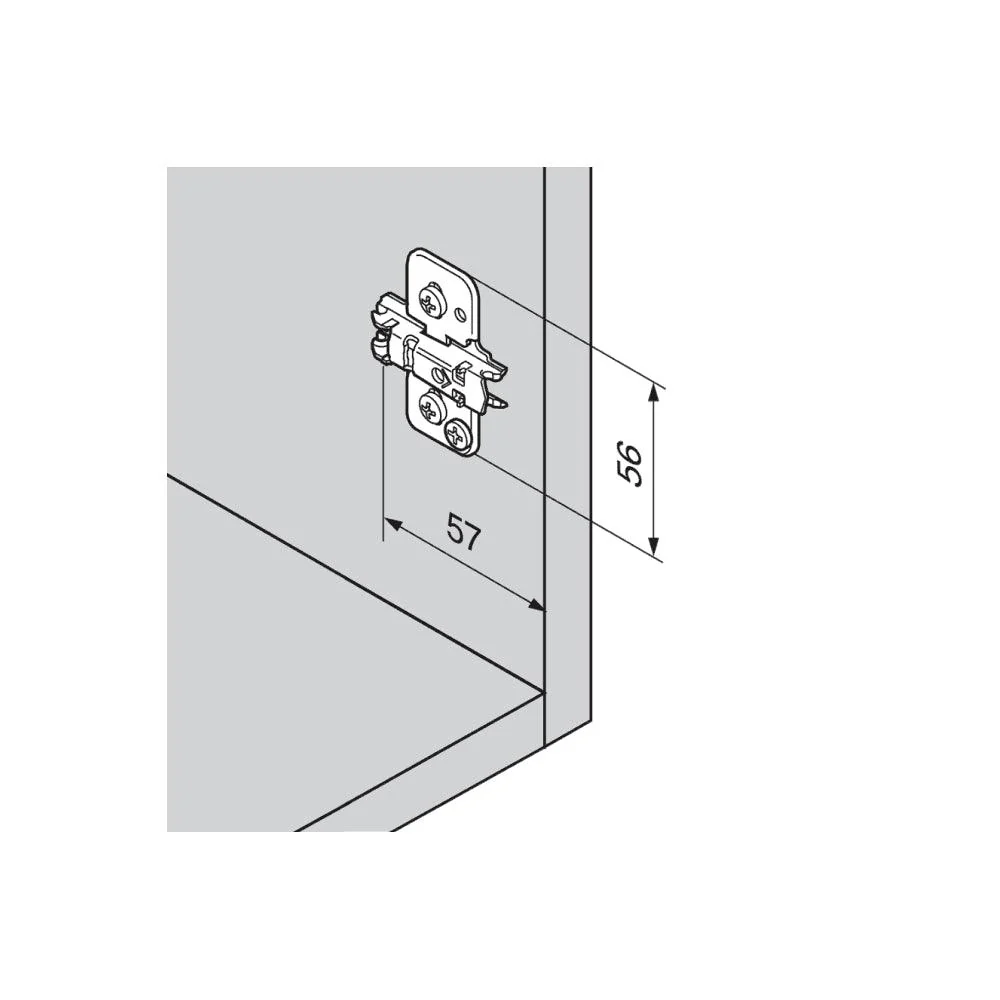

Installation Information:
- Overlay door application: Distance from cabinet front edge to fixing hole centre: 37mm
- Inset door application: 37mm + door thickness +1.5mm clearance to fixing hole centre
- Height between fixing positions: 32mm
- Diameter of fixing holes: 5mm
- Drilling depth of fixing holes: 11.5mm
- Wide angled hinges require an additional fixing screw (min 20mm) to the centre of the mounting plate
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Blum Clip Mounting Plate, Cruciform, Expando, Pre-Mount 0mm Nickel 174H7100E
Blum Clip Mounting Plate, Cruciform, Expando, Pre-Mount 0mm Nickel 174H7100E
CLIP mounting plate, cruciform, 0 mm, steel, Expando (pre-mounted screws with split dowels), HA: cam
Blum Clip Mounting Hinge Plates with Expando Pre-Mounted Screws And Split Dowels.
- Clip Mounting Plate
- Part Number: 174H7100E
- Item Number: 09340977
- Colour/Finish: Nickel Plated
- Material: Steel
- 0mm Spacing
- Cruciform Shape Mounting Plate
- Fixing: Expando (pre-mounted screws with split dowels)
- Distance Cabinet Front Edge To First Fixing Position: 37mm
- Diameter Of Fixing Holes: 5mm
- Drilling Depth Of Fixing Holes: 11.5mm
- Mounting Plates Height Adjustment: With Camx
Installation Information:
- Overlay door application: Distance from cabinet front edge to fixing hole centre: 37mm
- Inset door application: 37mm + door thickness +1.5mm clearance to fixing hole centre
- Height between fixing positions: 32mm
- Diameter of fixing holes: 5mm
- Drilling depth of fixing holes: 11.5mm
- Wide angled hinges require an additional fixing screw (min 20mm) to the centre of the mounting plate
