CLIP mounting plate, cruciform, 0 mm, steel, with pre-mount. syst. screws, HA: elongated hole

These cruciform mounting plates are compatible with all of our Blum Hinges. These backplates come complete with euro screws for fixing.

• Part Number: 173L8100
• Item Number: 04417806
• Colour/Finish: Nickel Plated
• Material: Steel
• Spacing: 0mm
• Shape Of Mounting Plate: Cruciform
• Mounting Plate Variant: Without Fixing Screws
• Fixing: With Pre-Mount System Screws
• Distance Cabinet Front Edge To First Fixing Position: 37mm
• Diameter Of Fixing Holes: 5mm
• Drilling Depth Of Fixing Holes: 11.5mm
• Mounting Plates Height Adjustment: With Elongated Holex

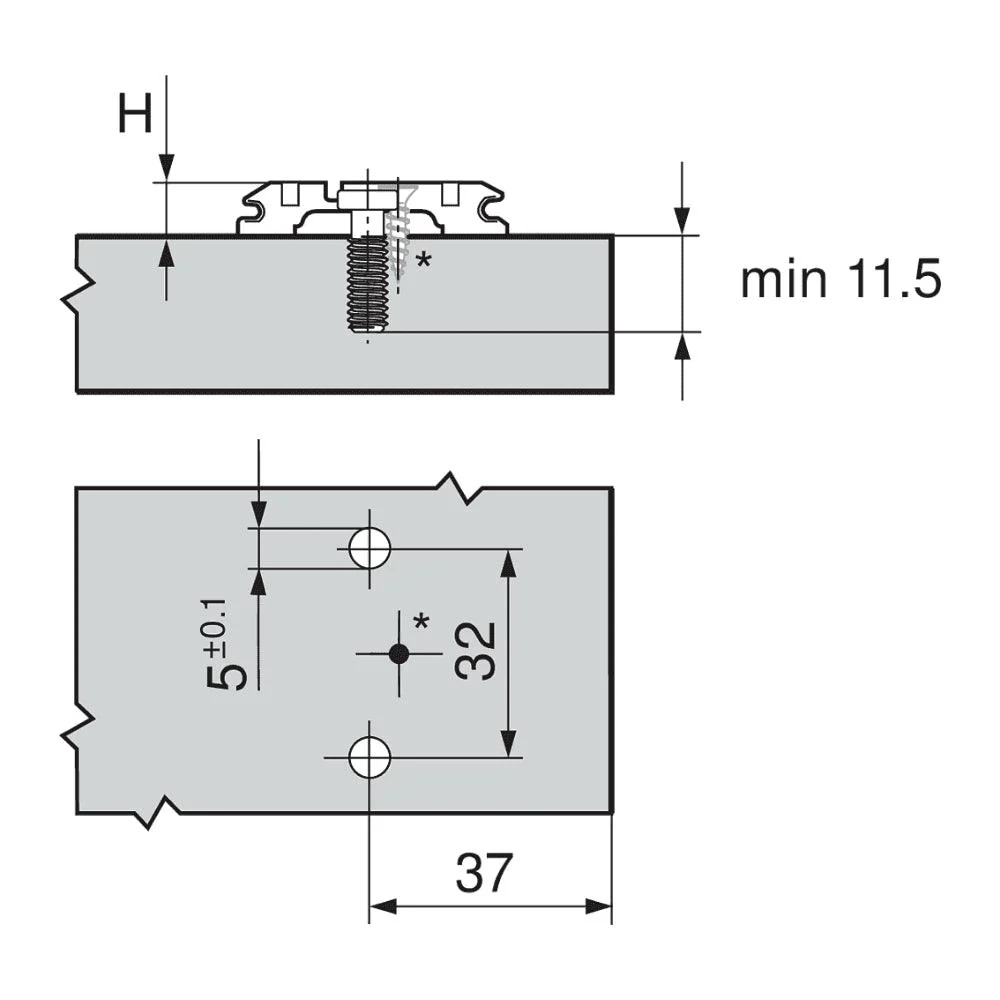

Installation:

• 32mm Between Fixing Positions
• 37mm Front Edge To First Fixing Position
• 5mm Diameter Fixing Holes
• 11.5mm Depth Of Fixing Holes
