CLIP top BLUMOTION standard hinge 110°, overlay application, boss: screw-on

The tried and tested Blumotion hinge range offers the absolute best in class soft closing cabinet hinges. With the incredible blumotion mechanism, you can decide between soft closing and not depending on the weight of your cabinet door.

The Blumotion system is fully integrated to the hinge.

• CLIP top standard hinge
• BLUMOTION
• Part Number: 71B3550
• Item Number: 08884623
• Colour/Finish: Nickel Plated
• Opening angle: 110°
• Cranking: Overlay application

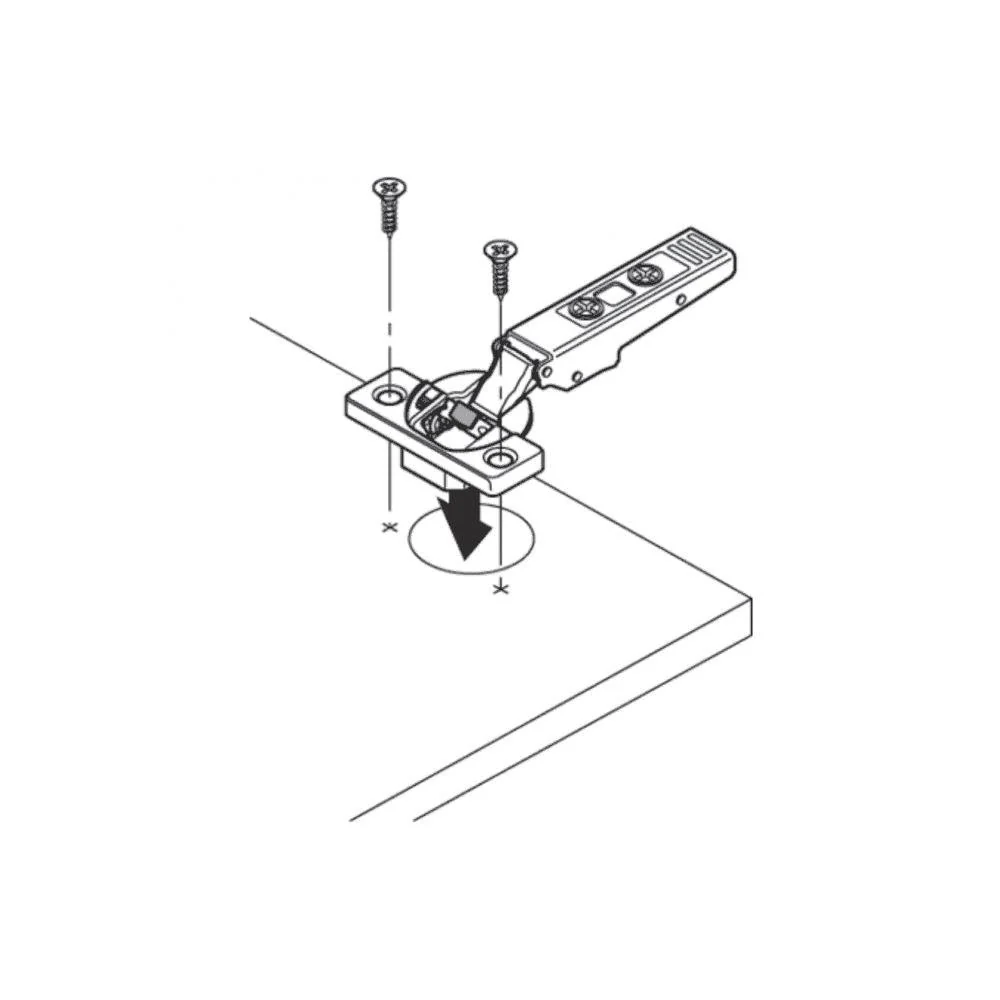

• Boss assembly: screw-on
• Boss material: Steel boss
• Closing mechanism: with spring
• Side adjustment: +/- 2 mm
• Depth adjustment: + 3/- 2 mm, convenient with spiral screw
• Lifetime Guarantee provided by Blum
• 3-Dimensional Front Adjustment
• Spiral Tech Depth Adjustment
• Suitable for special applications including mitred doors

Mounting plates sold separately.
Screws not included.

application	standard hinge
Cranking	Overlay application
Opening angle	110
Closing mechanism	with spring
hinge variant	With integrated BLUMOTION
Cover cap type	90M2503
Cover cap type	70.1503
Cover cap type	70T3504 – boss cover cap
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	screw-on

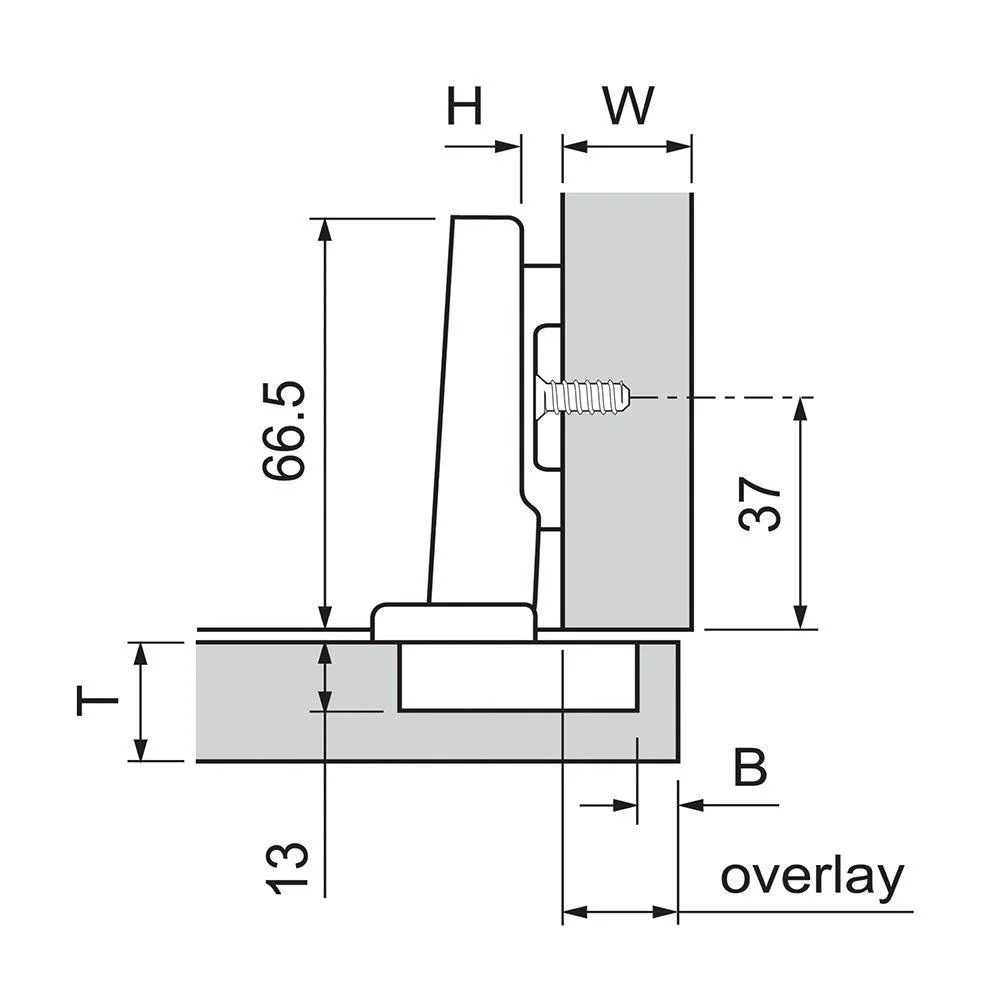

Flange width	57
Flange length	22
Flange height	3.2
diametre hinge boss drilling	35
distance between drillings	45
exccentric position of fixing holes to hinge boss hole	9.5
boss drilling depth	13
Minimum drilling distance	3
Maximum drilling distance	7
arm material	Steel
arm finish	Nickel plated
collision measurement (hinge arm height)	21.5
Fixed dimension / factory setting	11
Type of side adjustment	With screw
Side adjustment	+/- 2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+ 3/- 2 mm
Gap	1.5
Item package	1 piece
packaging	industrial packing
