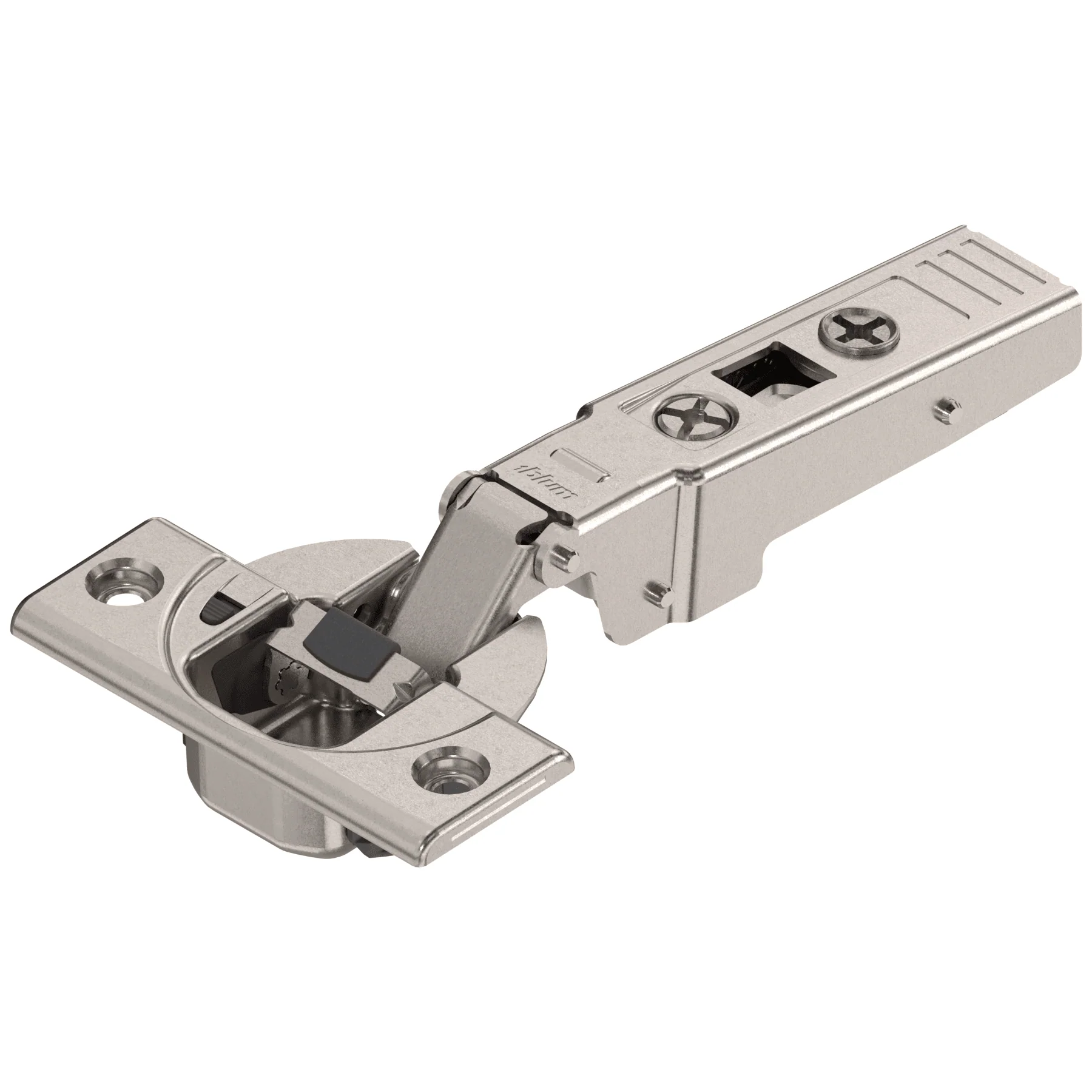

CLIP top BLUMOTION standard hinge 95°, overlay application, boss: screw-on

The tried and tested Blumotion hinge range offers the absolute best in class soft closing cabinet hinges. With the incredible blumotion mechanism, you can decide between soft closing and not depending on the weight of your cabinet door.

The Blumotion system is fully integrated to the hinge.

• CLIP top standard hinge
• BLUMOTION
• Part Number: 71B3550
• Item Number: 09349303
• Colour/Finish: Nickel Plated
• Opening angle: 95°

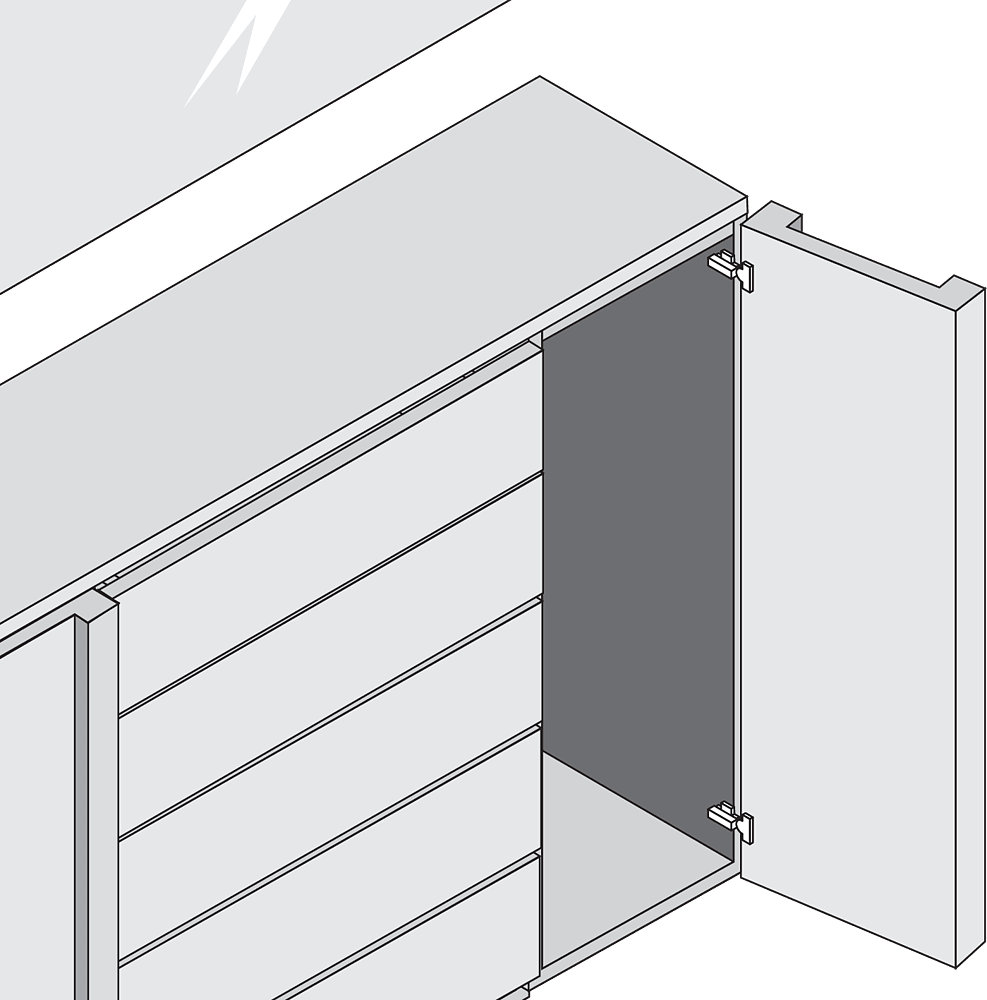

• Cranking: Overlay application
• Boss assembly: screw-on
• Boss material: Steel boss
• Closing mechanism: with spring

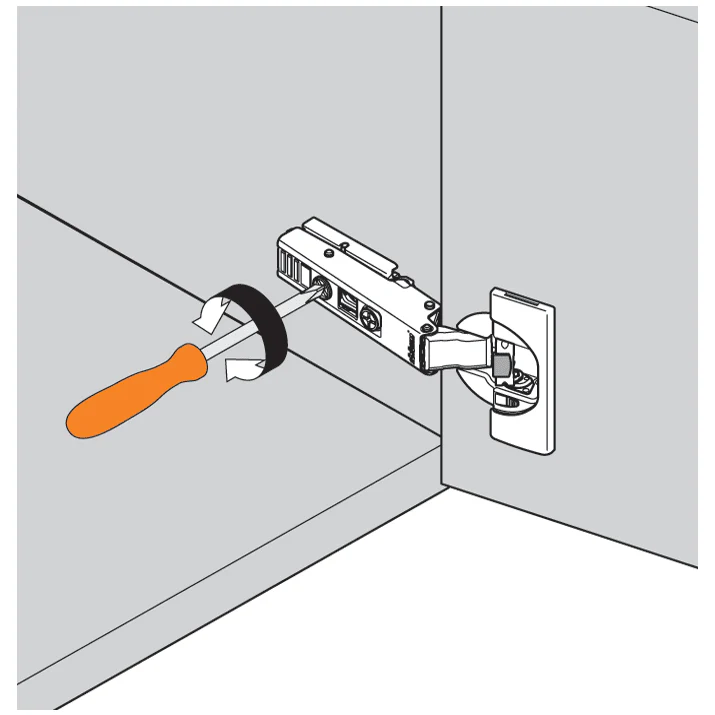

• Side adjustment: +/- 2 mm

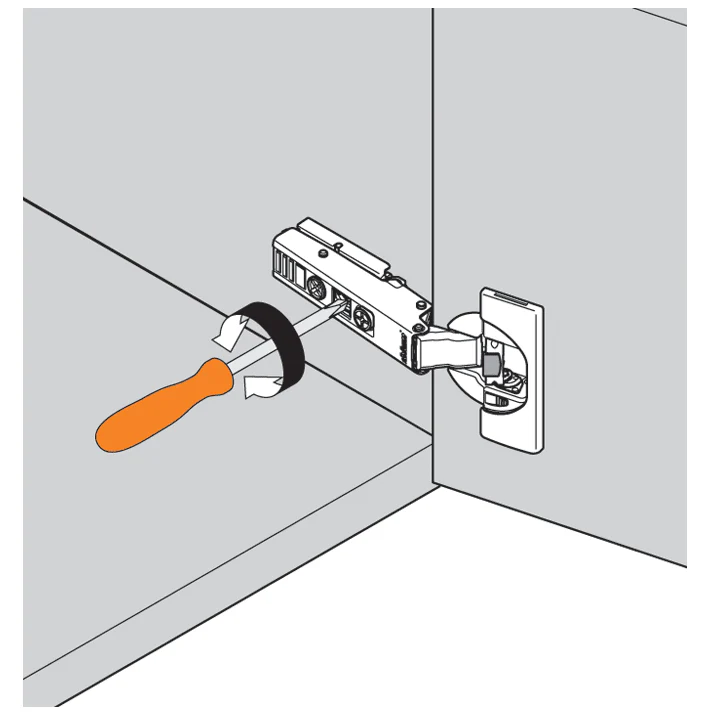

• Depth adjustment: + 3/- 2 mm, convenient with spiral screw
• Lifetime Guarantee provided by Blum

Mounting plates sold separately.
Screws not included.

application profile door hinge Cranking Overlay application Opening angle 95 Closing mechanism with spring hinge variant With integrated BLUMOTION Cover cap type 90M2503 Cover cap type 70.1553 Cover cap type 70T3504 – boss cover cap Boss material Steel boss boss finish Nickel plated Boss assembly screw-on Flange width 57 Flange length 22 Flange height 3.2 diametre hinge boss drilling 35 distance between drillings 45 exccentric position of fixing holes to hinge boss hole 9.5 boss drilling depth 13 Minimum drilling distance 3 Maximum drilling distance 7 arm material Steel arm finish Nickel plated collision measurement (hinge arm height) 22 Fixed dimension / factory setting 11 Type of side adjustment With screw Side adjustment +/- 2 mm Type of depth adjustment convenient with spiral screw Depth adjustment + 3/- 2 mm Gap 1.5 Item package 1 piece packaging industrial packing
